CRONEX X
Portable chronometer for precise detonation velocity measurement
CRONEX X is a high-precision portable chronometer developed by DIACSA to measure velocity of detonation (VOD) or deflagration in explosives, detonating cords and pyrotechnic mixtures. The device performs up to five independent measurements and displays results in series or parallel. It includes six fiber-optic inputs, high-contrast LCD screen, rechargeable Li-Ion 18650 battery, capacity for up to 2000 results and PC download through WinCronexR3.
CRONEX X - Simulacion
Medicion de velocidad de detonacion
Kit CRONEX X prepared for field and laboratory tests
The system integrates measurement equipment, signal capture, rechargeable power and PC communication to run tests with technical traceability.
Equipment parts
Includes
- CRONEX X device
- Transport case
- USB cable for charging and PC communication
- Fiber optic cutter
- 50 meters of fiber optic cable for tests
- WinCronexR3 software for record download

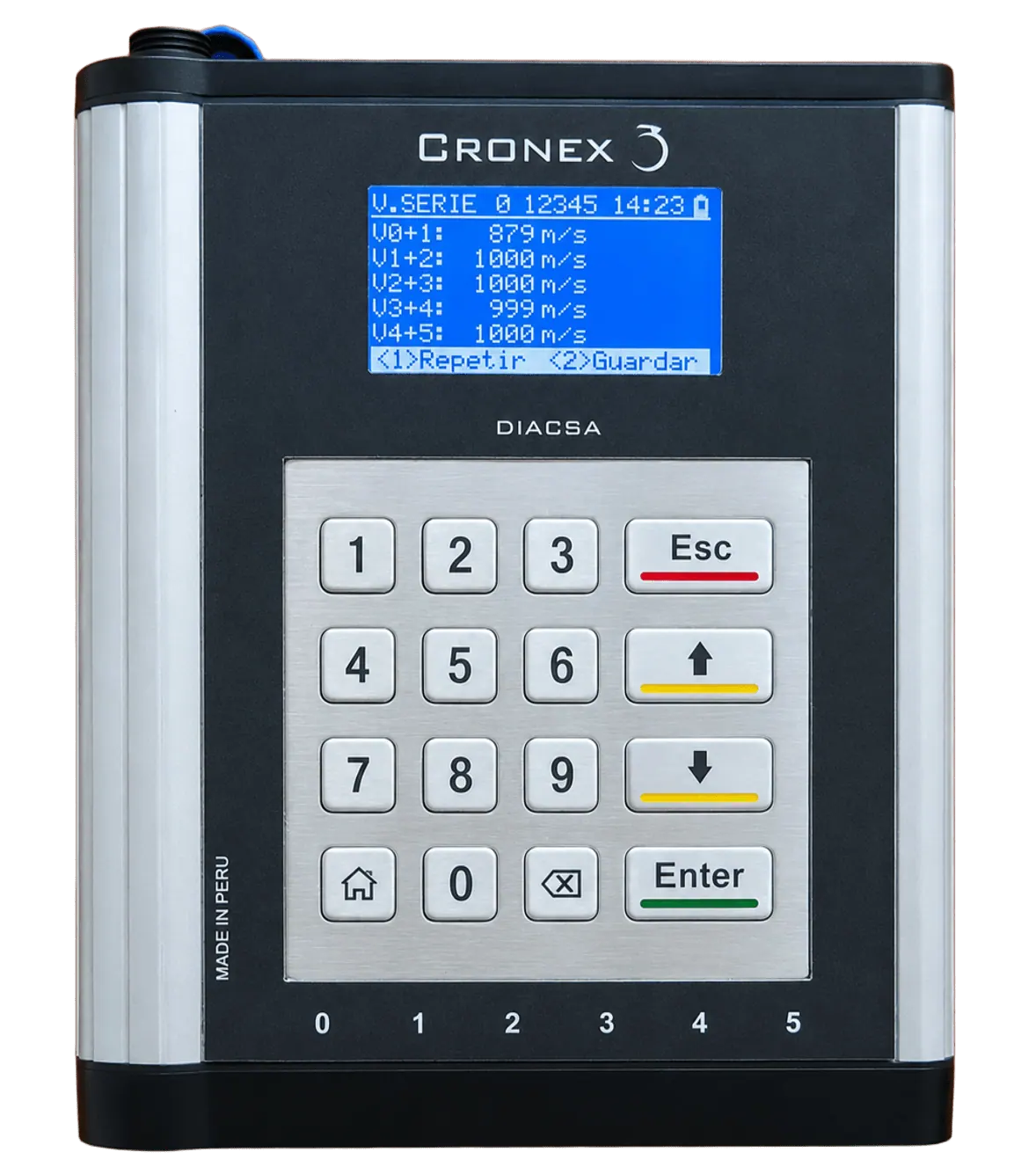

ScreenMeasurement results
LCD showing detonation velocities recorded by channel in the latest test.

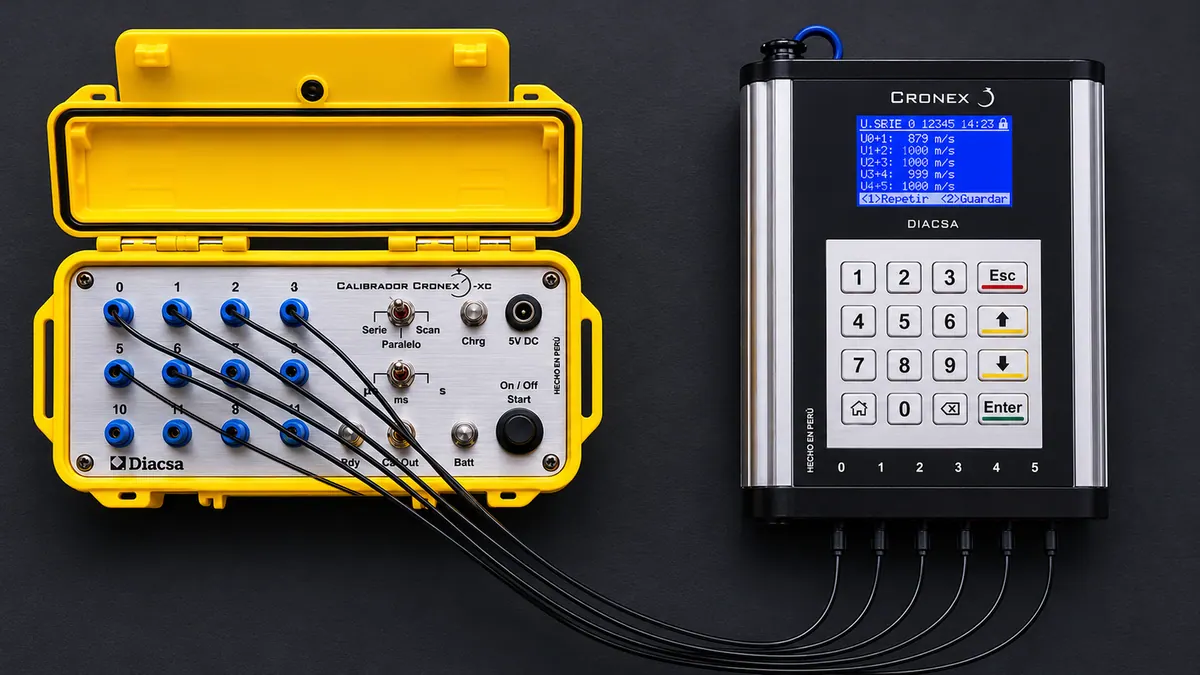

CalibratorCalibration kit connected
CRONEX-xc calibrator with 12 active inputs connected to the device for channel verification.

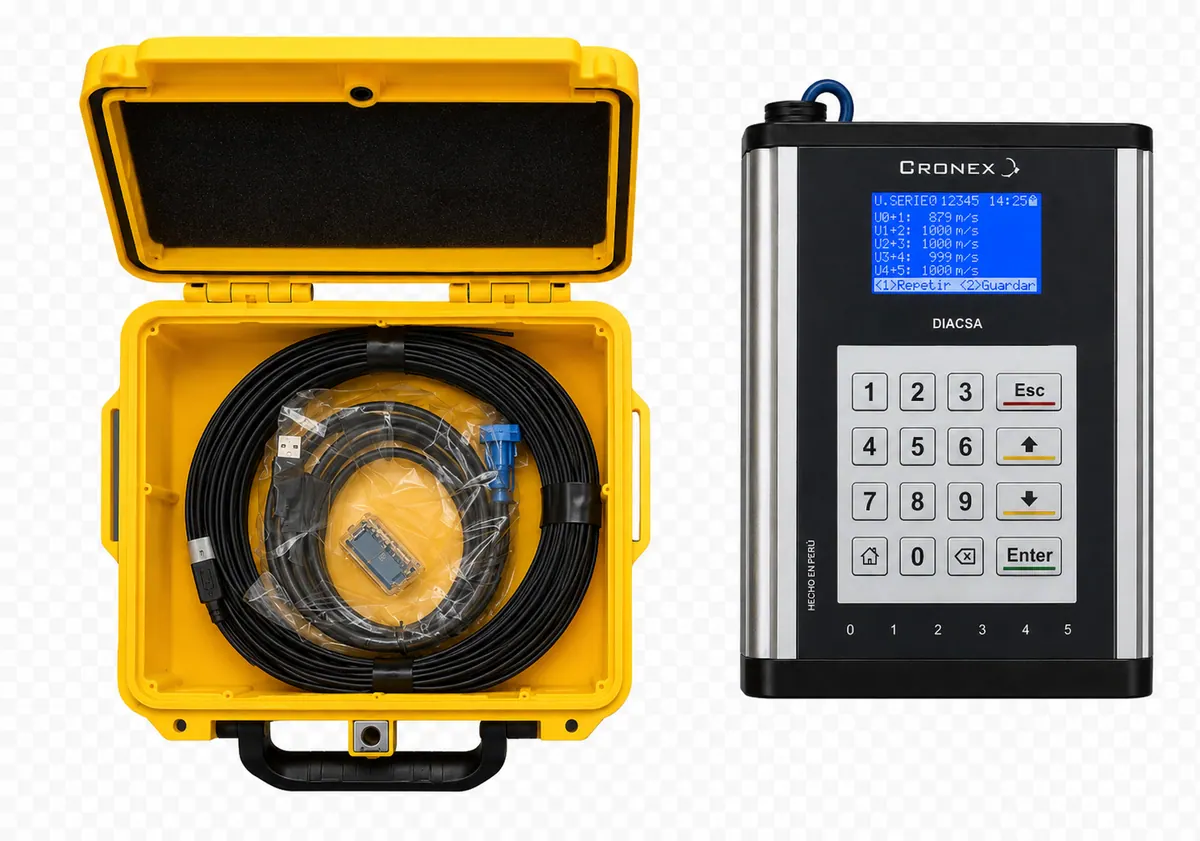

KitCase and complete equipment
IP67 case with fiber optic cable, cables and converter ready for field testing.
Benefits for the operation
Compact portable device for field and laboratory tests
Precise VOD and deflagration measurement with fiber-optic inputs
Up to 5 independent measurements per test
Date and time record for result traceability
Data download, memory clearing and synchronization from WinCronexR3
Local manufacturing in Peru with direct DIACSA technical support
- 6 fiber-optic inputs for signal capture
- Up to 5 independent measurements per test
- Time and velocity measurement modes in series or parallel
- +/- 0.0005% accuracy
- Up to 400 seconds in interval measurement
- Operating range down to 0.1 microseconds
- Storage capacity for up to 2000 results
- Time and date recorded for each measurement
- High-contrast LCD screen
- Rechargeable Li-Ion 18650 battery
- Mini-USB connector for battery charging and computer communication
- Anodized aluminum chassis, 20 cm x 16.5 cm x 3.6 cm
- Blasting tests in underground and open-pit mining
- Quality control in explosives manufacturing
- Tests on detonating cords and pyrotechnic mixtures
- Recording and analysis of intervals between detonations
