CRONEX XC
Extended system for field detonation velocity measurement
CRONEX XC is the extended version of the CRONEX line for velocity of detonation (VOD) or deflagration tests in explosives, detonating cords and pyrotechnic mixtures. The system includes adapters from 12 optical signals to 12 electrical signals, one start input and eleven measurement inputs, a range of up to 120 meters using electrical cable and a signal-converter case. It records date, time and product type for each test, stores up to 2000 results and supports USB or Bluetooth download through WinCronexR3.
CRONEX XC - Simulacion

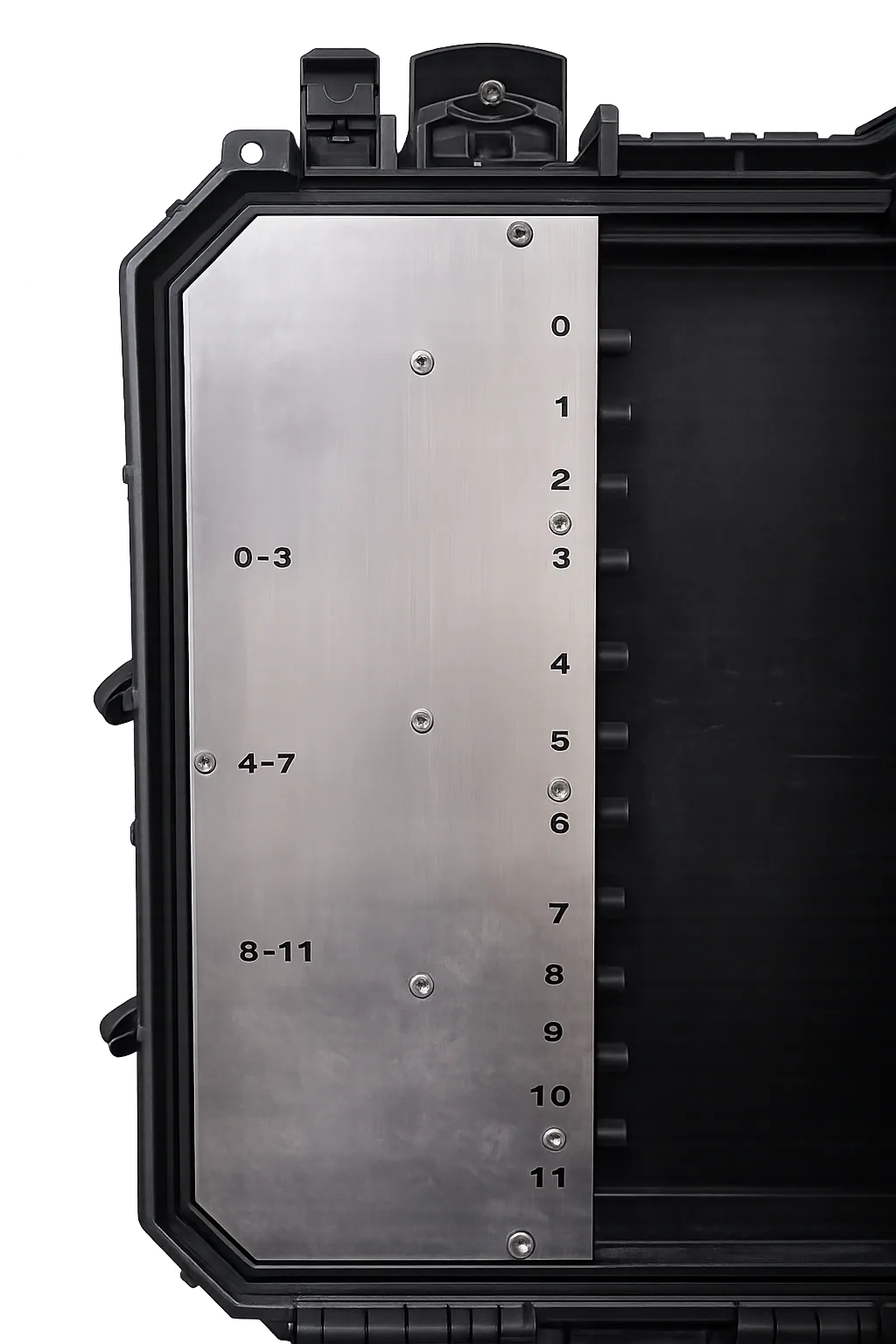

Conversion optica a electrica para VOD

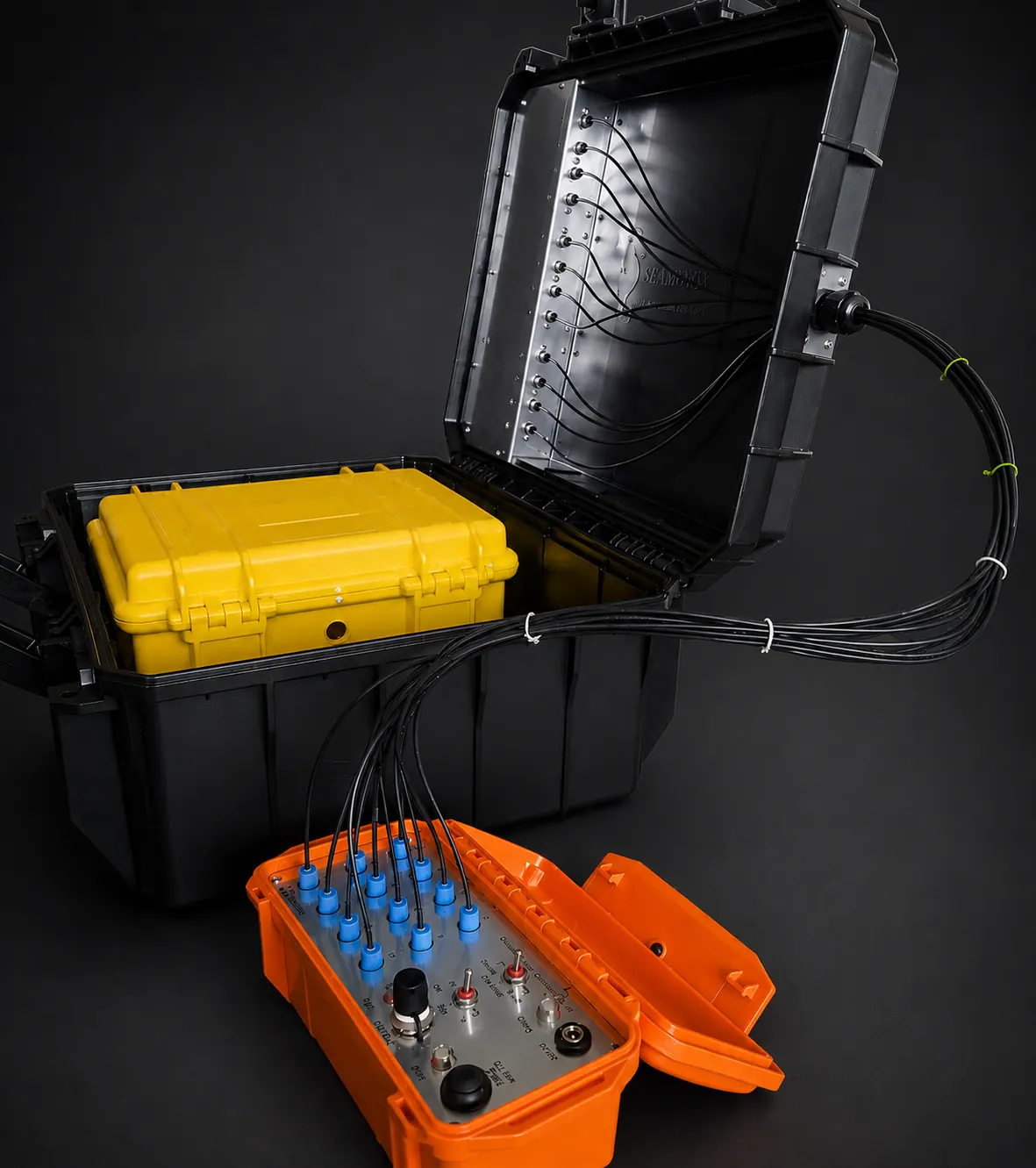

Kit CRONEX XC prepared for field and laboratory tests
The system integrates measurement equipment, signal capture, rechargeable power and PC communication to run tests with technical traceability.
Equipment parts
Includes
- CRONEX XC device
- USB-AB cable for PC communication
- Optical-to-electrical signal converter case
- Calibrator and charger
- Fiber optic cutter
- 12 electrical inputs: one start input and 11 measurement inputs
- USB or Bluetooth connection for information download
- WinCronexR3 software for record administration
Benefits for the operation
Longer measurement range for field tests using electrical cable
Optical-to-electrical signal conversion for more extensive test installations
Up to 11 independent measurements per test in series or parallel
IP67 case with MIL-STD-810F military standard for demanding operation
USB or Bluetooth PC connection for record download and management
Local manufacturing in Peru with direct DIACSA technical support
- Adapters from 12 optical signals to 12 electrical signals
- 12 electrical inputs: one start input and 11 measurement inputs
- Measurement range up to 120 meters with electrical cable
- 0.1 microsecond time-measurement resolution
- +/- 0.0005% accuracy
- Operating range from -10 to 50 degrees Celsius
- Storage capacity for up to 2000 tests
- Time, date and product type recorded for each measurement
- Polypropylene IP67 chassis, MIL-STD-810F and UL-HB75 classification
- Operating autonomy up to 5 hours
- USB or Bluetooth PC connection with WinCronexR3 software
- Includes calibrator for verification and optical-fiber order
- Blasting tests in underground and open-pit mining
- VOD measurements with longer electrical-cable sections
- Quality control in explosives manufacturing
- Technical recording of multiple measurement points in the same test
