PROXEM
Elevator access control
PROXEM turns the elevator into a building security point: each person presents a card or key fob and only the floors assigned to them are enabled. It is designed and manufactured in Peru by DIACSA, not imported. The system can be edited and configured according to the needs of each building or client. It controls up to 32 access points: 32 floors with one door per floor, or up to 16 floors with double access.
Simulate how PROXEM controls access in an elevator
Choose a user, drag the card or key fob to the reader and see which buttons respond. This is a reduced visual example to explain permission logic; it does not represent the device's total access limit.
User presents a credential
The card or key fob is brought close to the reader inside the elevator.
PROXEM checks permission
In seconds, it verifies which floors are assigned to that user.
Authorized floors are enabled
Only authorized floors can be selected from the elevator panel.
Simple administration
The administrator adds, removes or changes permissions from the system.
Installed equipment and configuration in one view
This visual path shows the physical controller, how it is mounted in the elevator and how cards, floors and schedules are managed from PROXEM software.

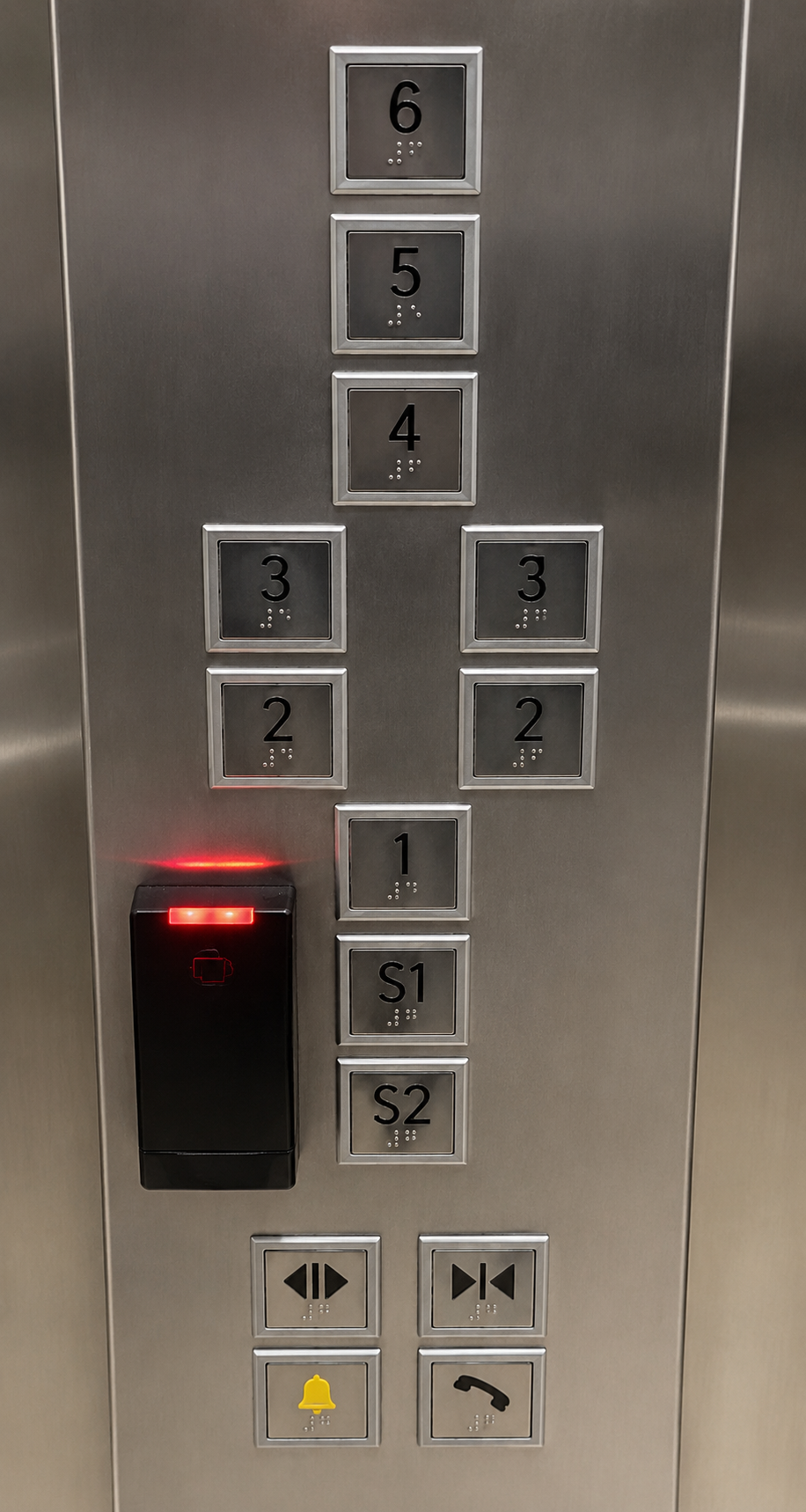

Reading inside the elevator
The user presents a card or key fob and only authorized floors are enabled.

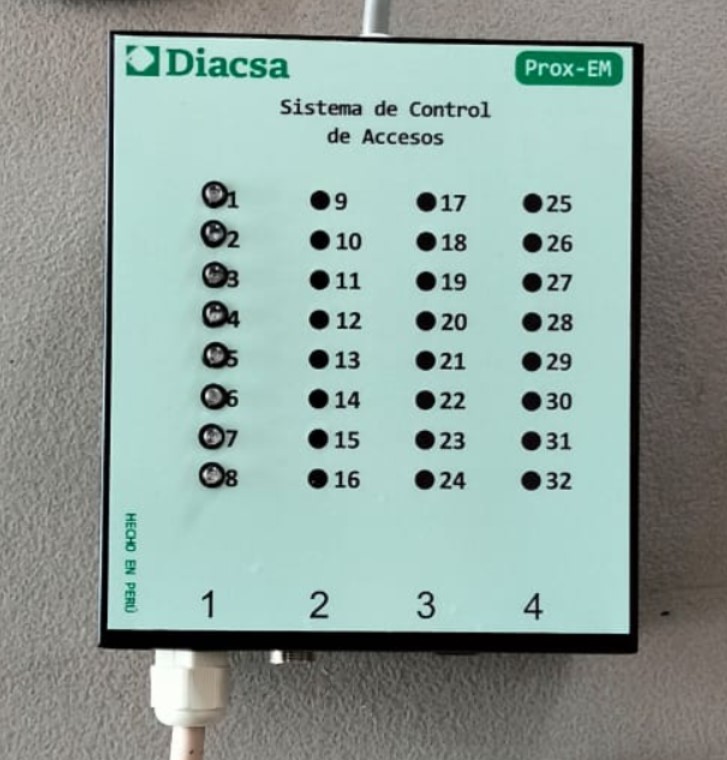

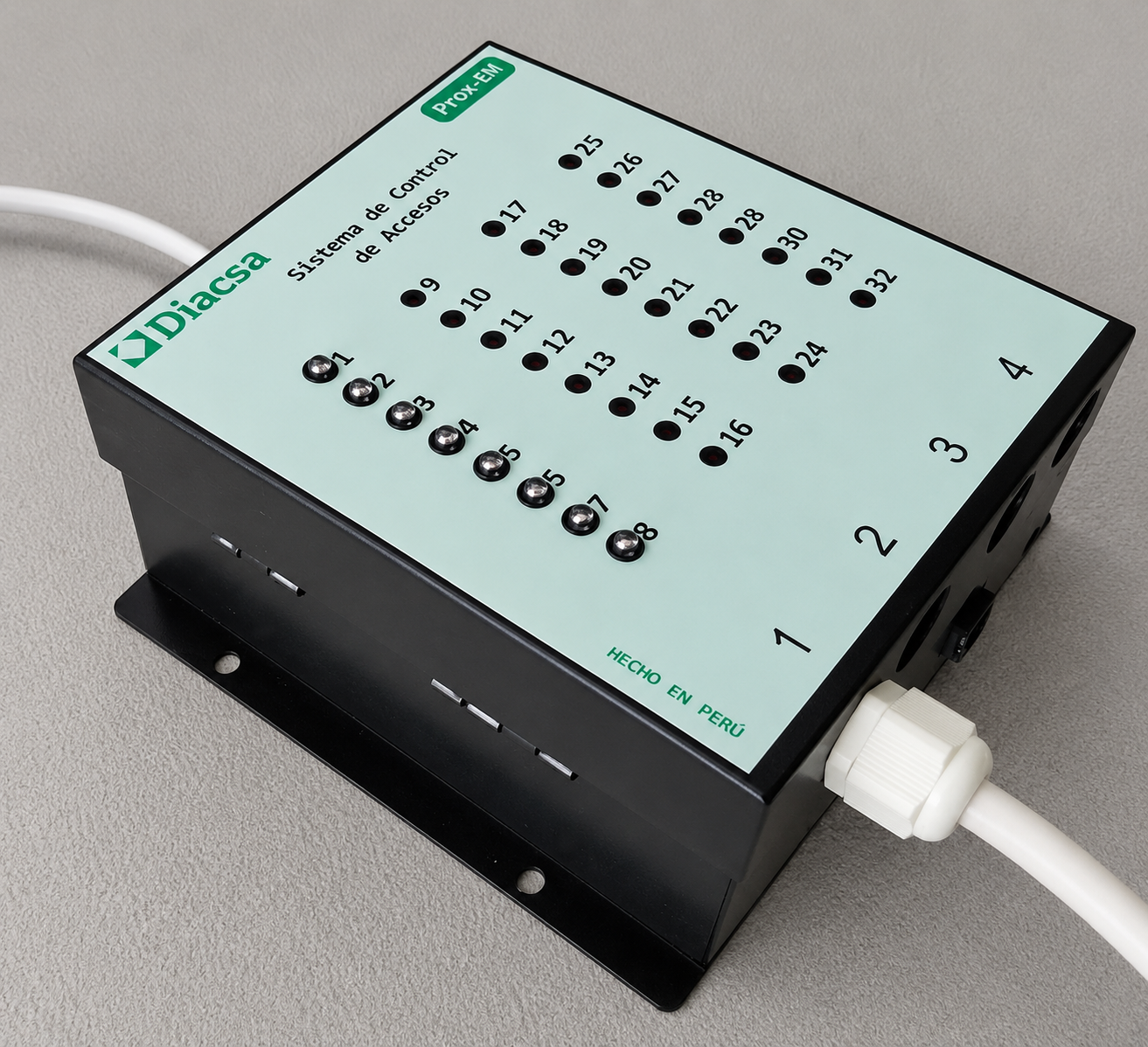

PROXEM controller
Module prepared to connect button-panel signals, RFID reader and floor outputs.
Installed device
Final controller location inside the real elevator operating environment.
Compact, automatic distributed control for each floor
PROXEM ONE is installed by floor or access point. The user presents a credential outside the elevator and the device automatically calls the cabin, with RS485 communication, 220 VAC power and two outputs per unit.

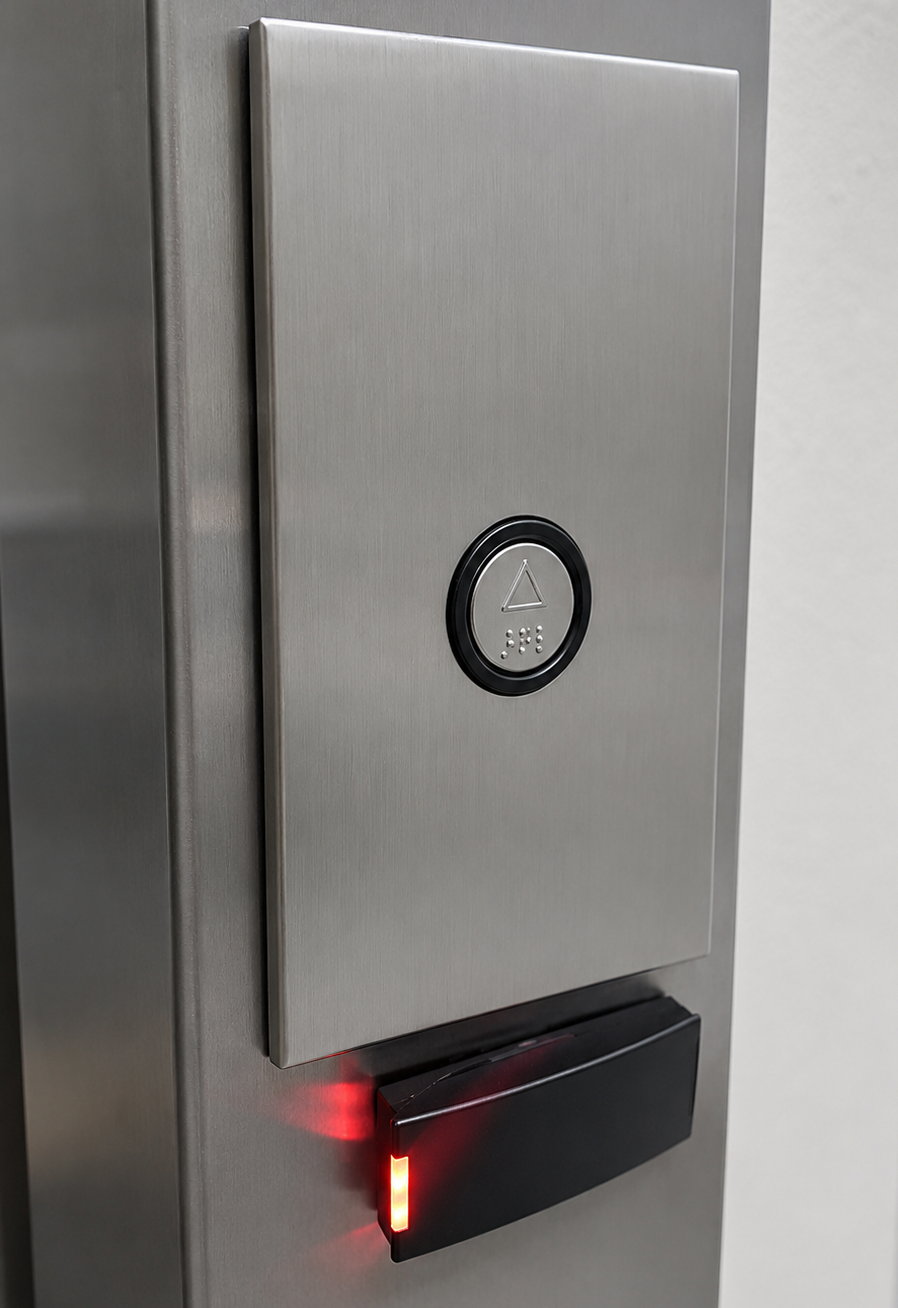

Outdoor reader
Credential outside the cabin

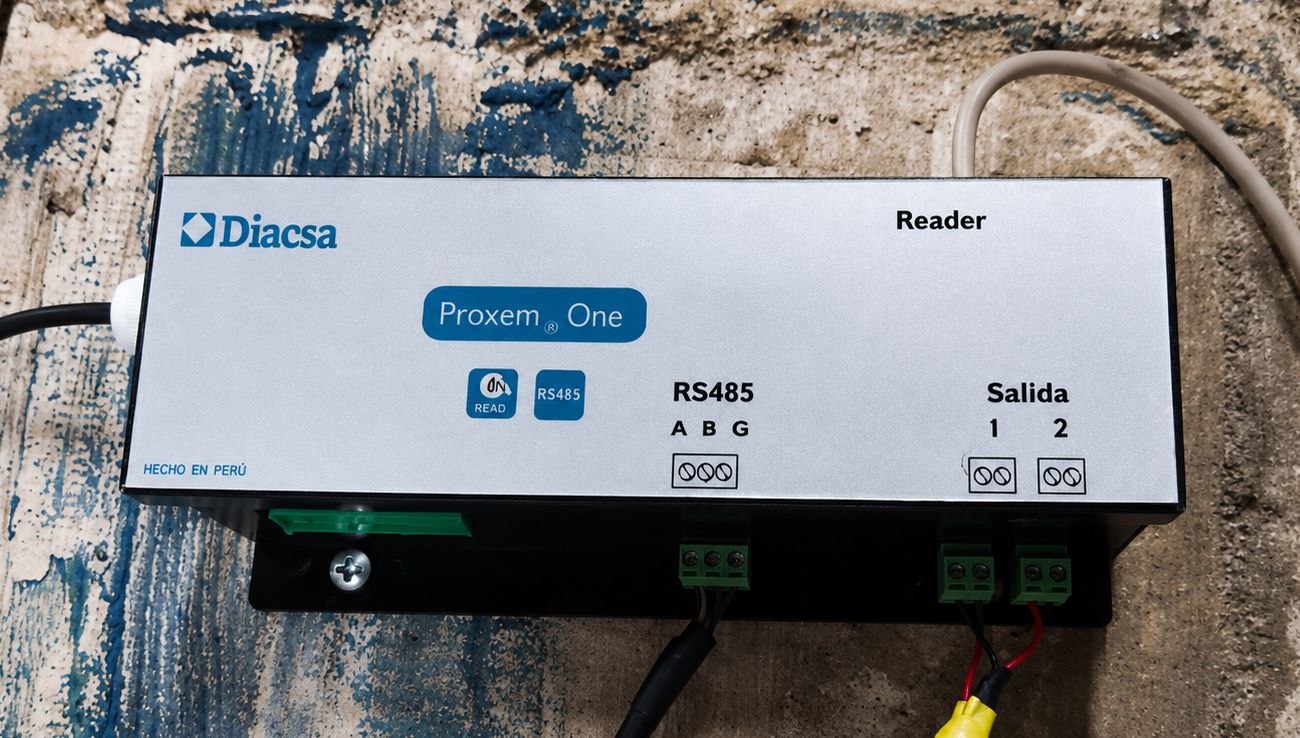

PROXEM ONE
RS485 · 220 VAC · 2 outputs
Choose PROXEM according to the number of floors or central access points
The model number indicates how many control outputs the device handles. A floor with one door uses one output; a floor with double access uses two. You can combine single and double-access floors in the same device; the double-access value shows the limit if the entire building had two doors per floor.
Model
PROXEM 8
One door per floor
8 floorsDouble access
4 floorsHandles 8 outputs: up to 8 one-door floors, or up to 4 floors if all use double access. Mixed configurations are also possible.
Model
PROXEM 16
One door per floor
16 floorsDouble access
8 floorsHandles 16 outputs: up to 16 one-door floors, or up to 8 floors if all use double access. It can combine simple and double-access floors according to the building.
Model
PROXEM 24
One door per floor
24 floorsDouble access
12 floorsHandles 24 outputs: up to 24 one-door floors, or up to 12 floors if all use double access. The configuration can combine both access types.
Model
PROXEM 32
One door per floor
32 floorsDouble access
16 floorsHandles 32 outputs: up to 32 one-door floors, or up to 16 floors if all use double access. This is the maximum capacity when the whole building has double access.
Benefits for the operation
Floor-by-floor access restriction without construction work or elevator modifications
User and access-level management from PROXEM software
Designed and manufactured in Peru, not imported
Editable and configurable for each building or client requirement
Compatible with most elevator button panels
Installation without intervention from the elevator company
Built-in Bluetooth in all models for wireless laptop management
Up to 32 access points: 32 floors with one door per floor, or up to 16 floors with double access
- RFID proximity card and key fob reading
- Cabin-top installation without structural changes
- Built-in Bluetooth hardware for wireless management from a laptop with PROXEM software
- Updates without requiring the elevator company to be present
- PROXEM ONE version for distributed floor-by-floor installations with RFID reader, RS485 communication and 2 outputs per device
- Multiple users and configurable access levels
- Residential buildings and condominiums
- Corporate buildings and offices
- Hotels and hospitality facilities
- Clinics and hospitals with restricted areas
- Parking levels with controlled access
Related industries
PROXEM Bluetooth Adapter
Current PROXEM models already include built-in Bluetooth. This adapter is offered as an add-on for previous-generation PROXEM units that need wireless connection to the administration software.
Need PROXEM for your project?
Contact us for technical specifications, availability or a commercial inquiry.
